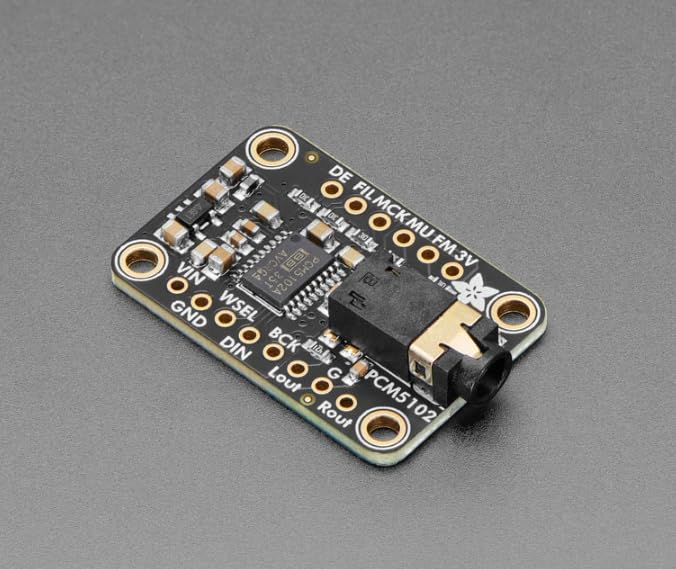

Adafruit PCM5102 I2S DAC with Line Level Output - 112dB SNR - SKU 6250

Marke: MicroMaker
Enthaltene Komponenten: see manufacturer
Anzahl der Artikel: 1

- Product ID: 6250
- Market-Leading Low Out-of-Band Noise Selectable Digital-Filter Latency and Performance Accepts 16-, 24-, And 32-Bit Audio Data Sampling Frequency 8kHz to 384kHz PCM Data Formats: I2S, Left-Justified Full Scale Output 2.1VRMS (GND center) Integrated Power-On Reset Automatic Power-Save Mode When LRCK And BCK Are Deactivated. Integrated High-Performance Audio PLL With BCK Reference To Generate SCK Internally
- 3.3V Failsafe LVCMOS Digital Inputs Hardware Configuration Integrated Negative Charge Pump Internal Pop-Free Control For Sample-Rate Changes Or Clock Halts SNR / Dynamic Range: 112dB THD+N @ - 1dBFS: -93dB
- Product Dimensions: 32.5mm x 20.3mm x 6.2mm / 1.3" x 0.8" x 0.2" Product Weight: 2.8g / 0.1oz
